Stackfield API

With the Stackfield API, you have the ability to send data from your systems directly to Stackfield to automate your internal processes.

General Description Post Url Limitations Availability Error Codes Data Chat Messages Discussions Tasks Pages Files Events Settings Adding Users to the Organization Removing Users from the Organization Deactivating Users Creating Rooms Archiving Rooms Adding Users to a Room Removing Users from a Room

Description

You can find an article with examples for an easy use of the WebHooks with external tools on the following page: https://www.stackfield.com/blog/process-automation-with-zapier-ifttt-86

With the incoming WebHooks, information can be forwarded directly to Stackfield without much detour. This interface uses HTTP requests in combination with JSON payloads to create elements, such as messages, tasks, etc., on Stackfield.

To send data to a Stackfield, POST URLs must be generated.

Where do I get the POST URL?

Sending data to a Room

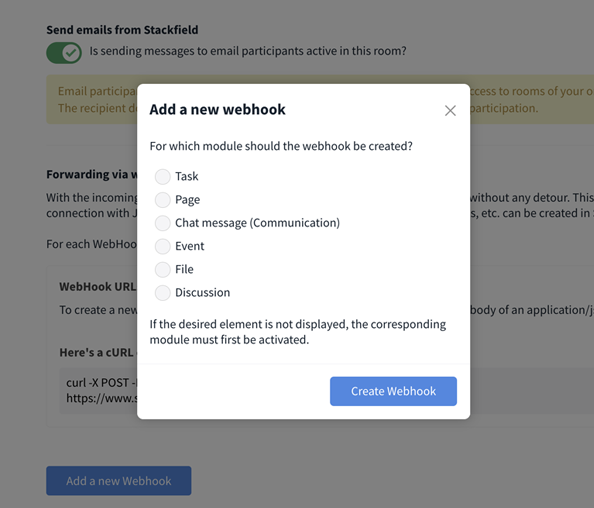

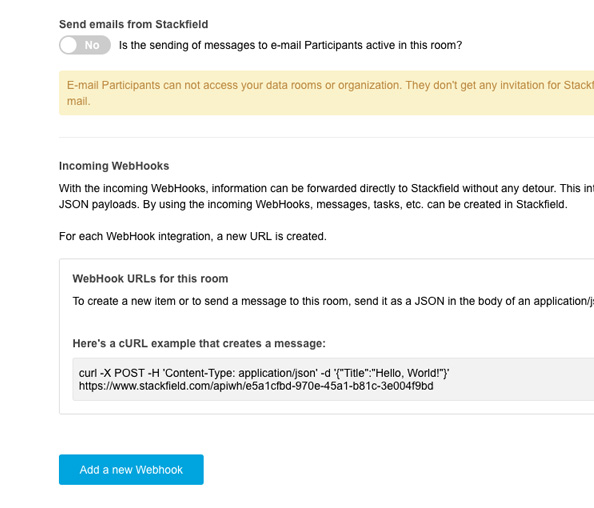

The POST URL for sending data to a Room can be accessed through the Room Settings. There you can find the tab "Integrations", in which the button "Add new WebHook" can be selected.

Changing the Room Settings

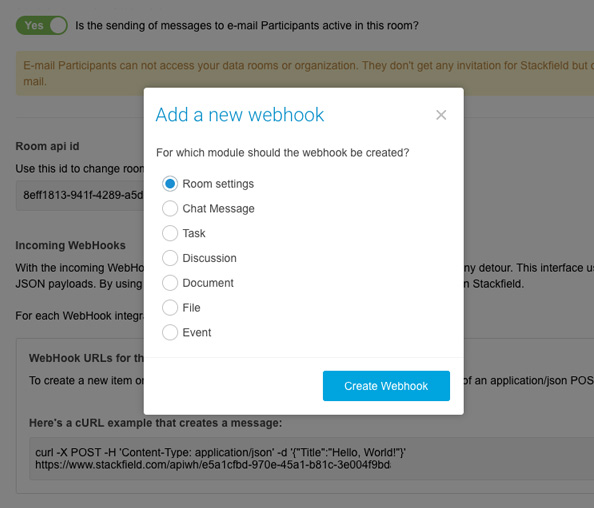

Likewise in the Room Settings, tab "Integrations", there is the Room API ID, via which the room settings can be controlled.
(This feature is only available in the Enterprise version!)

Changing the Organization Settings

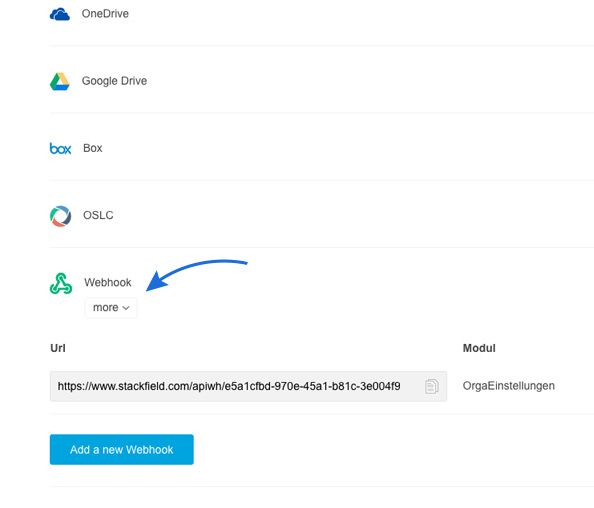

Within the Organization Settings is the tab "Integrations" located, which allows the administration of all interfaces to the organization. This tab also includes the option "WebHook". After clicking on "More", the necessary options for adding new WebHooks to control the Organization Settings are displayed.
(This feature is only available in the Enterprise version!)

Limitations

A maximum of one request per second can be processed.

Availability

In addition to sending information to Stackfield, it is also possible to make changes to the settings of the rooms and the organization. The editing of the settings via API is only available in the Enterprise version.

Error Codes

Error Code	Description
200	Successful request and response.
4030	Request could not be completed.
4031	Invalid request.
4032	Encrypted rooms are not supported.
4033	Room type is not supported.
4034	Invalid request.
4035	List level: Module, Room or Organisation not active.
4035	Invalid request. ObjectId is invalid.
4036	Room level: Module, Room or Organisation not active.
4037	Organisation level: Module, Room or Organisation not active.
4038	Integration disabled.
4038	Module disabled.
4039	This organization is not a payed organization.
4040	API call limit exceeded.
4041	No files found.
4042	File is too big. Max 1GB.
4042	There is not enough free storage space in this organization to perform the upload.
4043	Cannot read file.
4044	Attachment could not be added.
4045	Invalid file type.
4050	Invalid request. Title is null or empty.
4051	Invalid request. Users is null or empty.
4052	Invalid request. Command is unknown.
4055	Invalid request. DateEnd is before DateStart.
4056	Invalid request. User contains invalid email.
4056	Invalid request. Property could not be parsed.
4057	Double request.
4060	Invalid Email.
4061	Invalid email. Item not found
4070	Invalid request. Command is null or empty.
4071	Invalid request. RoomId is null or empty.
4072	Not enough free slots.
4073	To many invitations
4074	Users are managed by your domain.
4075	Invalid request. User with email not member of this organization.
4076	Invalid request. User with email is already deactivated.
4077	Invalid request. You can not remove all admins.
4078	Invalid email and group combination
4079	Room is already archived
4080	User is already member of this organization.
4081	Setting: Rooms must be encrypted.
4082	You can not use encrypted templates.

Chat Messages

Location of the POST URL

Room Settings > Integrations > Add a new WebHook > Chat Message

Parameter

Parameter	Mandatory field	Description
Title	Yes	Content of the Chat Message

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Title":"Hello World!"}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Discussions

Location of the POST URL

Room Settings > Integrations > Add a new WebHook > Discussion

Parameter

Parameter	Mandatory field	Description
Title	Yes	Title of the Discussion
Content	No	Description of the Discussion

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Title":"That's a title!", "Content":"Look at that description!"}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

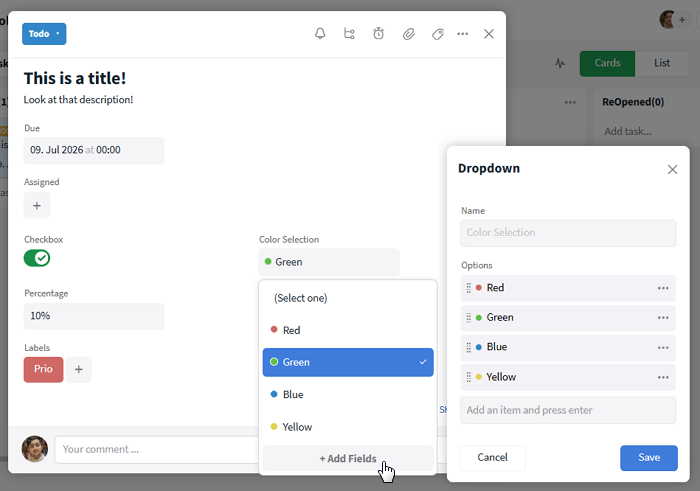

Tasks

Location of the POST URL

Room Settings > Integrations > Add a new WebHook > Task

Parameter

Parameter	Mandatory field	Description
Title	Yes	Title of the Task
Content	No	Description of the Task
DateStart	No	Start date
DateEnd	No	End date
Users	No	List of email addresses of assigned users

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Title":"That's a title!", "Content":"Look at that description!", "DateStart":"2019-07-08 22:00", "Users":["user1@demo.de","user2@demo.de"]}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Pages

Location of the POST URL

Room Settings > Integrations > Add a new WebHook > Page

Parameter

Parameter	Mandatory field	Description
Title	Yes	Title of the Page
Content	No	Description of the Page

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Title":"That's a title!", "Content":"Look at that description!"}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Files

Location of the POST URL

Room Settings > Integrations > Add a new WebHook > File

Parameter

Parameter	Mandatory field	Description
File	Yes	File path

Type

POST
Content-Type: "multipart/form-data"

Example

curl -F 'File=@C:\Pictures\MyImage.jpg'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Events

Location of the POST URL

Room Settings > Integrations > Add a new WebHook > Event

Parameter

Parameter	Mandatory field	Description
Title	Yes	Title of the Event
Content	No	Description of the Event
DateStart	Yes	Start date
DateEnd	Yes	End date
Users	No	List of invited users

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Title":"That's a title!", "Content":"Look at that description!", "DateStart":"2019-07-08 22:00","DateEnd":"2019-07-08 23:00", "Users":["user1@demo.de","user2@demo.de"]}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Adding Users to the Organization

(This feature is only available in the Enterprise version!)

POST Url

Organization Settings > Integrations > WebHook > Add a new WebHook > User

Parameter

Parameter	Mandatory field	Description
Command	Yes	Command name: CreateUser
Email	Yes	Email address of the user
DisplayName	Yes	Display name of the user
UserName	Only for Windows Authentication (On-Premise-Version)	UserId
OrgRoleId	Yes	Role within the Organization: 1 - Admin 2 - Member 3 - Guest 4 - External
AuthProvider	No (only used with SSO)	Id of Identity Provider

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Command":"CreateUser","Email":"apiTester01@webhook.de","DisplayName":"Api Tester01","OrgRoleId":2}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Removing User from the Organization

(This feature is only available in the Enterprise version!)

Location of the POST URL

Organization Settings > Integrations > WebHook > Add a new WebHook

Parameter

Parameter	Mandatory field	Description
Command	Yes	Command name: RemoveUser
Email	Yes	Email address of the User

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Command":"RemoveUser","Email":"apiTester01@webhook.de"}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Deactivating Users

(This feature is only available in the Enterprise version!)

Location of the POST URL

Organization Settings > Integrations > WebHook > Add a new WebHook

Parameter

Parameter	Mandatory field	Description
Command	Yes	Befehlsname: DeactivateUser
Email	Yes	Email address of the User

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Command":"DeactivateUser","Email":"apiTester01@webhook.de"}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Creating Rooms

(This feature is only available in the Enterprise version!)

Location of the POST URL

Organization Settings > Integrations > WebHook > Add a new WebHook

Parameter

Parameter	Mandatory field	Description
Command	Yes	Command name: CreateRoom
RoomId	(Return)	Id of the Room
Name	Yes	Name of the Room
Description	Nein	Description of the Room
TemplateId	Nein	Id of the Room Template
Users	Nein	List of Room Members

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Command":"CreateRoom","Name":"webhook room from template6","Description":"neuer webhook room desc","TemplateId":"03852566-669e-4991-9491-12', "Users":[{"Email":"remtester@mail.de","GroupId":2,"IsAdmin":"true"}]}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Archiving Rooms

(This feature is only available in the Enterprise version!)

Location of the POST URL

Organization Settings > Integrations > WebHook > Add a new WebHook > Room Settings

Parameter

Parameter	Mandatory field	Description
Command	Yes	Command name: ArchiveRoom

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Command":"ArchiveRoom"}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Adding Users to a Room

(This feature is only available in the Enterprise version!)

Location of the POST URL

Organization Settings > Integrations > WebHook > Add a new WebHook > Room Settings

Room Settings > Integrations > WebHook > Add a new WebHook > Room Settings

Parameter

Parameter	Mandatory field	Description
Command	Yes	Command name: GrantRoomAccess
Users	Yes	List of Room Members
RoomId	No	Raum API Id

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Command":"GrantRoomAccess", "Users":[{"Email":"remtester@mail.de","GroupId":2,"IsAdmin":"true"}]}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5

Removing Users from a Room

(This feature is only available in the Enterprise version!)

Location of the POST URL

Organization Settings > Integrations > WebHook > Add a new WebHook > Room Settings

Room Settings > Integrations > WebHook > Add a new WebHook > Room Settings

Parameter

Parameter	Mandatory field	Description
Command	Yes	Command name: RevokeRoomAccess
Users	Yes	List of Room Members
RoomId	No	Raum API Id

Type

POST
Content-Type: "application/json"

Example

curl -X POST -H 'Content-Type: application/json' -d '{"Command":"RevokeRoomAccess","Users":["remtester@mail.te"]}'
https://www.stackfield.com/apiwh/e5a1cfbd-970e-45a1-b81c-3e004f9bdab5
